Faretto da Terra per Esterno Giardino Led Acciaio 2,1W 24V DC IP67 Tondo Ø38
Guarantee Safe Checkout
Pickup available at Sede Operativa Oniroview Usually ready in 24 hours
Pickup available
-
Sede Operativa Oniroview
Pickup available, usually ready in 24 hours
Via Piave 17
Check in google map
95129 Catania CT
Italy
Faretto da Terra per Esterno Giardino Led Acciaio 2,1W 24V DC IP67 Tondo Ø38
📐 Ø38 mm · foro Ø28 │ 2,1W · 24Vdc │ IP67 calpestabile
🔧 Difficoltà: 3/5 │ 🎯 Adatto a: privati e installatori — camminamenti, bordi piscina, terrazze
Segnapasso da incasso a pavimento con sistema water stop serie Walk
La condensa è il punto debole classico dei faretti led da incasso a pavimento per esterno: il vetro si appanna dall'interno e la luce cala. La serie Walk affronta il problema con un sistema water stop che riduce il vapore acqueo che si forma durante l'esercizio. Corpo compatto da Ø38 mm su foro di incasso Ø28 mm, 2,1W a 24Vdc per 120 lm in bianco freddo 5700K o 115 lm in bianco caldo 3000K, con un'apertura da 80° che stende la luce sul piano invece di puntarla verso l'alto. Tenuta IP67, diffusore in vetro temprato, cassaforma da incasso inclusa.
Chi lo sceglie
- 🚶 Chi segna un camminamento: gli 80° di apertura illuminano il piano di calpestio a breve raggio, senza abbagliare chi cammina.
- 🧱 Chi ha poco spessore da forare: il foro Ø28 mm è tra i più piccoli della categoria interrati e si gestisce anche su massetti e pavimentazioni già finite.
- 💧 Chi lavora in zone umide: il sistema water stop è pensato proprio per bordo piscina, terrazze e aree soggette a irrigazione.
- ⛔ Non fa per te se devi illuminare un albero o una facciata: con 120 lm e un fascio da 80° questo è un segnapasso, non un proiettore in risalita. E l'IP67 copre l'immersione temporanea, non la posa permanente sott'acqua.
Analisi tecnica
- 💧 Sistema water stop: riduce il vapore acqueo interno, la causa più comune di appannamento nei corpi incassati a terra.
- 🔩 Capacità di carico: 1330 kg con punta di prova Ø10 mm.
- 💡 Resa: 120 lm a 5700K e 115 lm a 3000K con 2,1W, CRI 80, apertura 80°.
- 🛡️ Materiali: corpo in alluminio verniciato grigio, cornice in acciaio, diffusore in vetro temprato.
- ⏱️ Durata: L70B50 a 30.000 h e 15.000 cicli di accensione dichiarati; rischio fotobiologico esente.
- 🔌 Elettrica: 24Vdc, driver integrato a ingresso capacitivo, non dimmerabile, cavo H05RNF da 0,5 m.
- 🌡️ Esercizio: da −20 a +40 °C, ingombro 38 x 63 mm.
🧠 Il Consiglio dell'Esperto:
Questi 2,1W rendono al meglio in serie, non da soli: su un camminamento il risultato lo ottieni allineando più punti a passo regolare, perché con 120 lm ciascuno l'effetto è una sequenza di pozze di luce, non un'illuminazione continua. La linea a 24Vdc ti permette di alimentarli tutti da un unico driver: somma le potenze e moltiplica per tre, come chiede il costruttore, quindi 6,3W a faretto — otto pezzi stanno in un alimentatore da 60W con margine.
🔗 Completa il tuo progetto
- Alimentatore 24Vdc dimensionato a 3× la potenza installata: vedi gli alimentatori.
Domande frequenti
Come si installa un faretto led da incasso a pavimento per esterno?
Si annega la cassaforma inclusa nel getto o nel sottofondo, lasciando il bordo a filo o leggermente in rilievo rispetto al piano finito, poi si passa il cavo a 24Vdc in guaina e si inserisce il corpo illuminante. Il foro utile è Ø28 mm. Evita gli avvallamenti e, su terreni argillosi, predisponi un drenaggio in ghiaia attorno al punto di posa.
Perché i faretti a pavimento si appannano dall'interno?
Perché l'aria intrappolata nel corpo si carica di umidità e condensa sul vetro quando il LED si raffredda. La serie Walk integra un sistema water stop che riduce il vapore acqueo formatosi durante l'utilizzo. Resta comunque buona pratica curare il drenaggio del punto di posa, perché il ristagno prolungato d'acqua sul diffusore è la condizione peggiore.
Quanti lumen servono per un camminamento in giardino?
Per un percorso pedonale servono punti luce ravvicinati e a basso flusso, non pochi apparecchi potenti: 115–120 lm per punto con apertura 80° sono una dotazione tipica dei segnapasso, che devono rendere leggibile il piano di calpestio senza abbagliare. Se ti serve illuminare un volume verticale, l'apparecchio corretto è un altro.

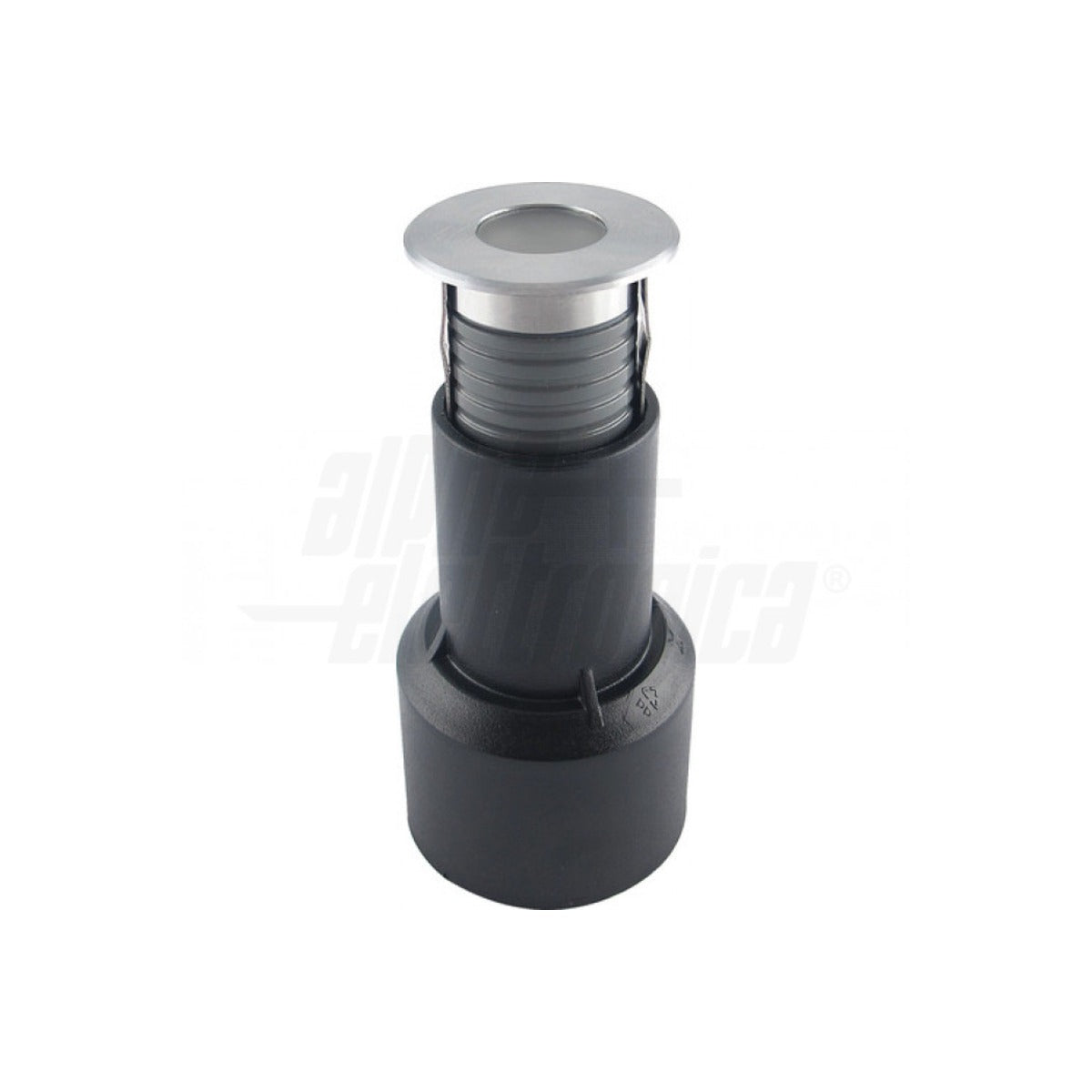

📦 Contenuto della confezione: 1 faretto LED da incasso + cassaforma da incasso.
✅ Garanzia e sicurezza: grado di protezione IP67, diffusore in vetro temprato, rischio fotobiologico esente, temperatura di esercizio −20/+40 °C. Garanzia 2 anni ai sensi del D.Lgs. 170/2021. Assistenza tecnica diretta da Catania.
Caratteristiche Generali
| Marca | JOlight | Serie | Walk | |
|---|---|---|---|---|
| Numero Led | 1 | Rischio fotobiologico | Esente | |
| Tempo di vita L70B50 | 30000 h | Numero cicli di accensione | 15000 | |
| Codici | JO401-02 · JO401-02WW | Tecnologia | Sistema water stop |
Caratteristiche Elettriche
| Potenza | 2,1 W | Tens. funzionamento DC | 24 Vdc | |
|---|---|---|---|---|
| Alimentatore | Esterno (non incluso) | Dimmerabile | no |
Caratteristiche Meccaniche

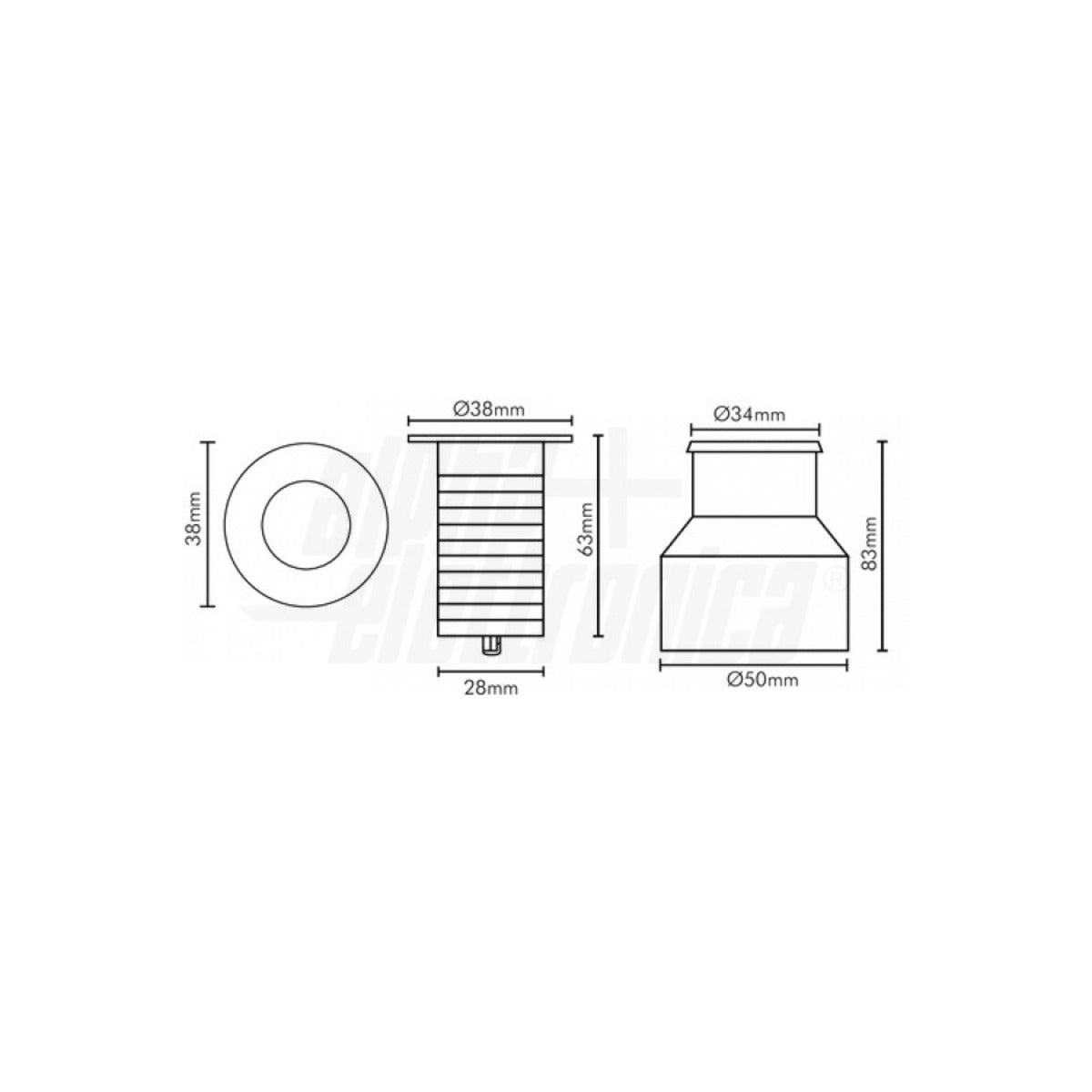

| Diametro | 38 mm | Dimensioni | 38 x 63 mm | |
|---|---|---|---|---|
| Foro incasso | ø28 mm | Fissaggio | Incasso con cassaforma inclusa | |
| Montaggio | A pavimento | Grado di protezione | IP67 | |
| Materiale corpo | Alluminio verniciato | Colore corpo | Grigio | |
| Cornice | Acciaio | Diffusore | Vetro temprato | |
| Capacità di carico | ø10mm 1330 kg | Tipologia cavo | H05RNF | |
| Lunghezza cavo | 0,5 m | Connessioni | Cavo libero |
Caratteristiche di Illuminazione
| Colore | Bianco freddo / Bianco caldo | Temp. Colore | 5700K / 3000K | |
|---|---|---|---|---|
| Flusso | 120 lm / 115 lm | CRI | 80 | |

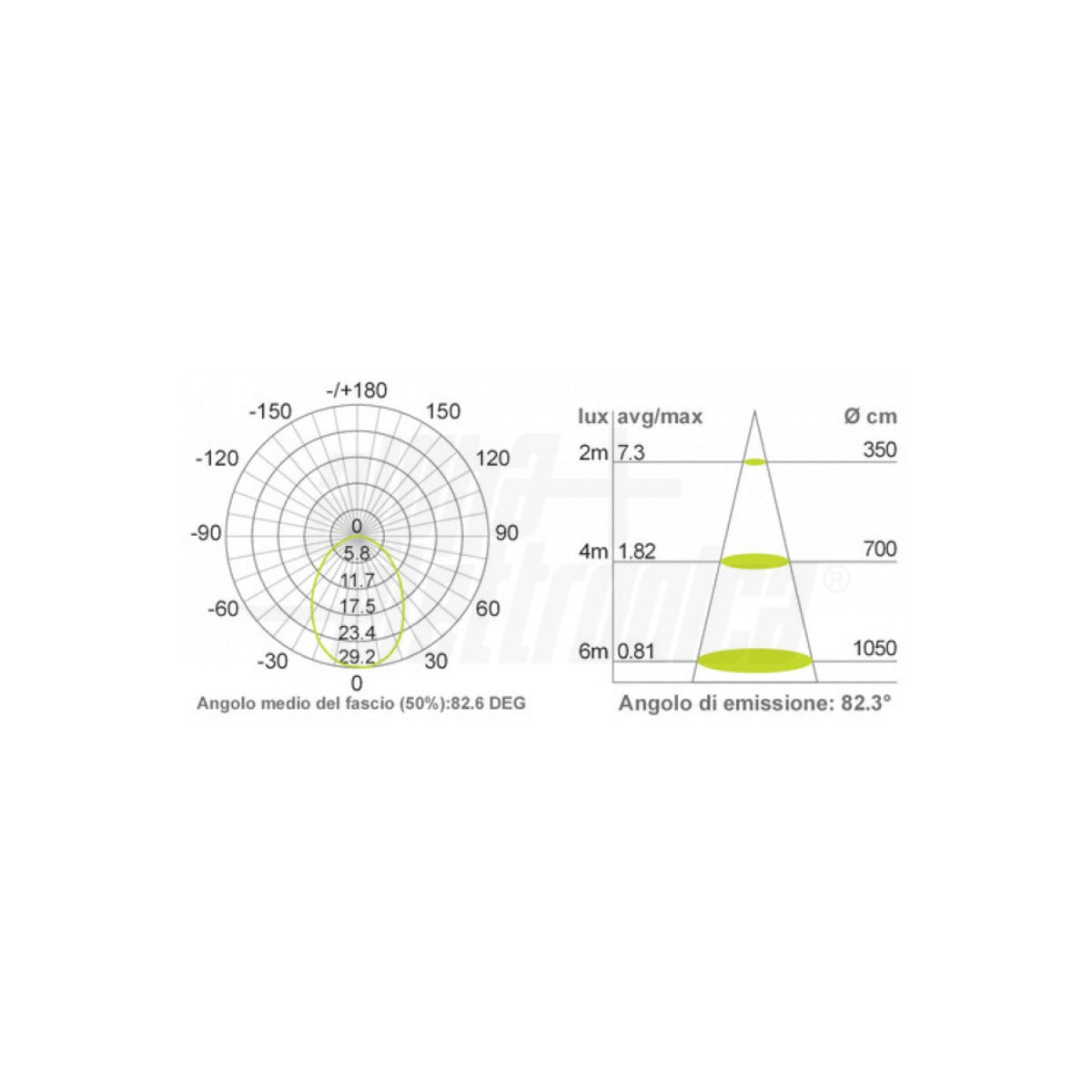

| Angolo di emissione | 80° | Sorgente | LED integrato |
Caratteristiche Termiche
| Temp. di funzionamento | -20 / 40 °C |
|---|
| Colore Luce |
3000K, 5700K |
|---|
